Designer's Insight: Home-Fitness Elliptical Machines

The rapid growth of the home-fitness market has encouraged many manufacturers to develop smaller, lighter, and lower-cost elliptical machines.

These efforts have led to innovative mechanical solutions, and in some situations compromized designs.

We share the insights and knowledge base developed from studying the mechanical designs and performance of mainstream home-fitness elliptical machines, including major brands and off-brand white-label models.

These engineering studies have guided the development of the LB007 Vertical Elliptical.

Elliptical Machine Knowledge Base

Learn how elliptical machines work, why they are designed this way, and how different design choices influence pedal motion, resistance, and overall exercise experience.

Compromised Designs for Home Fitness

In order to make the machines smaller to attract home fitness customers, as well as to fit better for ecommerce, many elliptical machine models are designed with shrinked linkage, scaled-down flywheel, and light-duty construction, compromising the pedal motion geometry, resistance smoothness, durability, and exercise experience.

Redundant white-label models flood the ecommerce market. Many are copy version with arbitrary modifications, rushed to market as long as the machine spins.

Lack of Design Validation

Elliptical machines are heavy-duty machines subjected to repeated mechanical loading. Without proper structural design and validation, they may fail or wear out prematurely.

Some small manufacturers pursue short-term sales by reducing material usage and adopting light-duty construction. They may claim a load capacity of 400 lb or even 600 lb. While the frame may withstand a static load, its long-term durability under long-term repeated loading cycles may not be validated. This is often the case for off-brand and white-label models.

Established brands and commercial-grade models are generally designed for long-term reliability and durability.

High Service/Repair Cost

Elliptical machines are generally expensive to service. They are tightly assembled to withstand heavy-duty applications. Replacing damaged couplings, bearings, or structural components often requires specialized tools and skills that are not available on site.

For home users, repair is often impractical. Disassembling a heavy machine and repacking it for return shipment is very difficult. As a result, many low-quality elliptical machines are discarded and end up as junk.

Limited Warranty Coverage

Product warranty offered by manufacturers may not get buy's interests sufficiently protected.

A 10-year frame warranty may sound reassuring, but it provides limited practical protection.

A 10-year frame warranty may sound reassuring, but the frame is generally the most durable part of an elliptical. Moving parts such as bearings and couplings are more likely to wear out. Yet these components and the associated labor often have shorter coverage.

Critical Design Principles

At Bluemov, we believe these engineering principles are essential to designing a better home-use elliptical.

No Compromised Design

Designing a home-use elliptical is not simply a matter of making it smaller. While aiming for a compact footprint, the mechanical design should not compromise pedal motion geometry, resistance characteristics, biomechanics, or exercise effectiveness.

Structure & Endurance Validation

Quality assurance is the best solution to the inherently high service and repair cost of elliptical machines. It begins with a well-developed testing standard that validates structural strength and endurance, which in turn determine the material and construction requirements.

The LB007 Vertical Elliptical

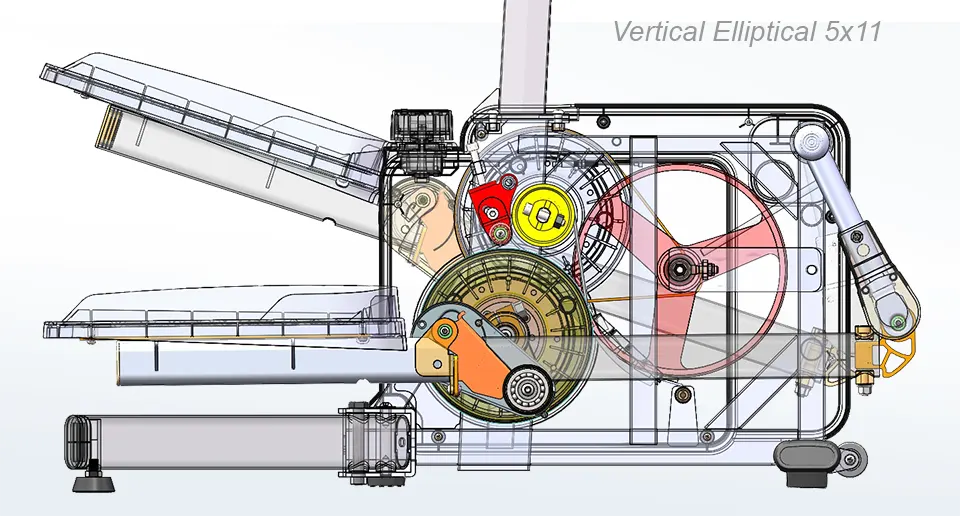

The LB007 Vertical Elliptical is designed with a two-stage transmission integrated into aDeliverabletional four-bar linkage mechanism. This architecture achieves a compact footprint while improving pedal motion geometry and resistance characteristics.

An ASTM F2810-based testing protocol validates the designed structural strength and endurance, supporting our straightforward 10-year warranty.
